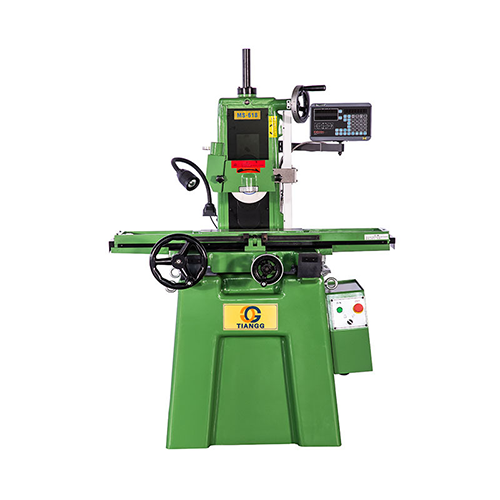

High precision surface grinders for Industrial Applications
High precision surface grinders are essential machines for modern manufacturing industries where accuracy, smooth surface finishes, and repeatability are critical. These machines are widely used in aerospace, automotive, die & mold, and precision engineering sectors. They are designed with advanced structures, strict energy-saving standards, and easy installation processes, making them both efficient and reliable.
This article provides an in-depth overview of high precision surface grinders, including maintenance frequency, structural explanation, energy-saving standards, and step-by-step installation guidelines.
Exceptional accuracy with minimal tolerance deviation.
Durable construction with vibration-resistant components.
Flexible usage for metals, alloys, and complex industrial parts.
Advanced lubrication and cooling systems to ensure longer machine life.
Compliance with energy-saving and environmental standards.
High precision surface grinders are built with carefully engineered structures to guarantee stability and performance. Below is a breakdown of their main components:
| Component | Description | Function |
|---|---|---|
| Bed/Base | Heavy-duty cast iron base | Provides stability and absorbs vibrations. |
| Table | Rectangular worktable, often with precision guideways | Supports workpieces and enables linear movement. |
| Spindle | Horizontal spindle system | Drives the grinding wheel with high speed and stability. |
| Grinding Wheel | Abrasive wheel | Removes material and ensures precision surface finishing. |
| Control Panel | CNC or manual operation panel | Allows users to set parameters and monitor processes. |
| Lubrication System | Automatic lubrication circuits | Reduces friction, wear, and extends machine lifespan. |
| Cooling System | Coolant circulation unit | Prevents overheating and ensures accurate grinding. |
The combination of these structural elements ensures consistent grinding accuracy, even under heavy workloads.
To achieve optimal performance, high precision surface grinders require regular and systematic maintenance. The maintenance frequency depends on usage, working environment, and load conditions.
Clean the grinding wheel and table after every operation.
Check lubrication oil levels.
Inspect coolant system for blockages.
Inspect spindle bearings for noise or overheating.
Check hydraulic and pneumatic systems (if applicable).
Tighten bolts and ensure no loose fittings.
Perform a detailed inspection of guideways for wear.
Clean filters in the lubrication and coolant systems.
Test electrical circuits and replace worn wiring.
Overhaul the spindle system and replace bearings if needed.
Calibrate control systems and check CNC accuracy.
Replace worn-out grinding wheels and auxiliary components.
Modern high precision surface grinders are designed with energy efficiency and sustainability in mind. Manufacturers adopt international energy-saving standards to reduce environmental impact and operating costs.
Key features include:
High-efficiency motors that reduce electricity consumption.
Low-vibration spindles designed for minimal energy loss.
Automatic standby mode when idle to save power.
Closed-loop coolant systems to reduce water consumption.
LED control panel displays that consume less energy.
Compliance with ISO 50001 energy management standards and CE/UL safety certifications ensures that these machines meet global environmental and efficiency requirements.
Proper installation is crucial for machine longevity and accuracy. The following steps outline the recommended installation process:
Ensure a solid, vibration-free foundation.
Maintain a controlled environment with stable temperature and humidity.
Provide adequate space for maintenance and operation.
Carefully remove the grinder from its packaging.
Place it on the prepared foundation using cranes or forklifts.
Align the machine with reference markers.
Use precision leveling instruments.
Adjust the base with leveling bolts to achieve stability.
Re-check alignment after 24 hours.
Connect the machine to the appropriate power supply.
Install hydraulic and coolant systems.
Verify safety switches and emergency stops.
Run the grinder at idle speed to check for abnormal vibration.
Test spindle and table movement for smoothness.
Perform trial grinding on a test workpiece.
Provide training for technicians and operators.
Explain safety guidelines, control functions, and maintenance routines.
Keep an operation manual on-site for reference.
High precision surface grinders are suitable for:
Aerospace parts: turbine blades, engine components.
Automotive industry: transmission gears, brake components.
Tool & Die making: molds, punches, and dies.
Precision engineering: high-tolerance machinery parts.
Their versatility and accuracy make them an indispensable tool for industries where surface quality and precision are critical.
Improved productivity: Faster grinding cycles with better results.
Reduced downtime: Through efficient maintenance schedules.
Energy-efficient operation: Lower energy consumption reduces costs.
Extended lifespan: Durable construction and reliable components.
Superior surface finish: Meets strict industry tolerances.
High precision surface grinders for industrial applications combine durability, accuracy, and energy efficiency. With proper maintenance frequency, structural understanding, energy-saving compliance, and correct installation, industries can maximize their productivity while minimizing costs and environmental impact.
By adopting these grinders, manufacturers gain a reliable solution for achieving world-class surface finishes and maintaining a competitive edge in global markets.
