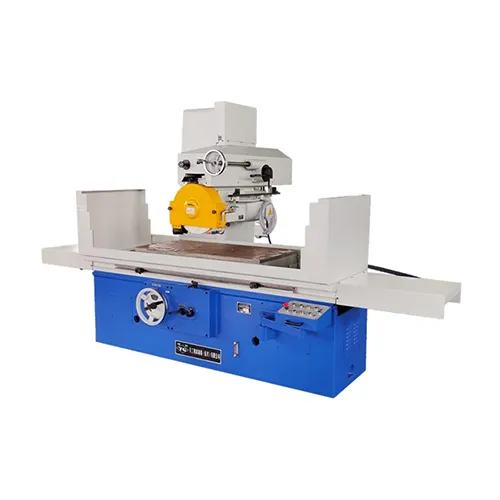

Features of the Single-Axis Programmable Horizontal Reciprocating Table Bearing Surface Grinder:
● The worktable reciprocates on the bed, while the grinding head moves horizontally on the carriage. The carriage, along with the grinding head, moves vertically on the column.
● The worktable's reciprocating motion is hydraulically driven, with stepless speed regulation.
● The grinding head's lateral feed is driven by a hydraulic motor driving an oil motor, while the vertical feed is driven by a servo motor. The grinding head's grinding wheel spindle is driven by an AC motor.
Technical parameters:
| parameter | unit | CKDM7 130X1000 | CKDM7132X1000 | CKDM7140X1000 | CKDM7150X1000 | CKDM7163X12050 | ||
| Workbench | Table size (width x length) | mm | 300X1000 | 320X1000 | 400X1000 | 500X1000 | 630X1250 | |
| Maximum grinding size (width x length x height) | mm | 300X1000X350 | 320X1000X350 | 400X1000X350 | 500X1000X350 | 630X1250X350 | ||
| Workbench longitudinal stroke (hydraulic) | mm | 200~1100 | 200~1100 | 200~1100 | 200~1100 | 200~1100 | ||
| Workbench speed (stepless) | m/min | 3-27 | 3-27 | 3-27 | 3-27 | 3-27 | ||
| Number of T-slots on the workbench X width | 3X18 | 3X18 | 3X18 | 3X18 | 3X18 | |||
| Workbench load capacity | kg | 468 | 468 | 468 | 500 | 600 | ||
| grinding head | Distance from grinding wheel spindle center to workbench | mm | 135~550 | 135~550 | 135~550 | 135~550 | 135~550 | |
| Grinding head transverse intermittent feed per stroke | mm/times | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 | ||
| Grinding wheel spindle speed | rpm | 1440 | 1440 | 1440 | 1440 | 1440 | ||
| Vertical feed handwheel dial value | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | ||
| Grinding head feed per handwheel rotation | Vertical feed | mm | 8 | 8 | 8 | 8 | 8 | |
| Cross feed | mm | 1.29 | 1.29 | 1.29 | 1.29 | 1.29 | ||
| Grinding wheel size (outer diameter x width x inner diameter) | mm | Φ(280~400)X50XΦ203 | Φ(280~400)X50XΦ203 | Φ(280~400)X50XΦ203 | Φ(280~400)X50XΦ203 | Φ(280~400)X50XΦ203 | ||
| Motor power | Total motor power | kw | About 13 | About 13 | About 13 | About 13 | About 13 | |
| Grinding head motor power | kw | 9 | 9 | 9 | 9 | 11 | ||
| Working accuracy | Parallelism of the machined surface to the base | mm | 300:0.005 | 300:0.005 | 300:0.005 | 300:0.005 | 300:0.005 | |
| surface roughness | um | Ra0.63 | Ra0.63 | Ra0.63 | Ra0.63 | Ra0.63 | ||
| net weight | kg | 3600 | 3800 | 4000 | 4500 | 5500 | ||
| Overall dimensions (length x width x height) | mm | 3200×1700×2050 | 3200×1700×2050 | 3200×1700×2050 | 3200×1700×2050 | 4000×2300×2200 | ||
Single-Axis Programmable Horizontal Spindle and Rectangular table bearing surface grinder: Structure, Installation, Maintenance, and Support
The Single-Axis Programmable Horizontal Spindle and Rectangular Table Bearing Surface Grinder is a precision machine designed for high-accuracy bearing surface grinding. Combining a robust horizontal spindle with a stable rectangular table and single-axis programmability, it ensures consistent surface finishes, minimal vibration, and reliable operation. This comprehensive guide covers structural features, installation instructions, maintenance protocols, performance inspection, and after-sales support to maximize productivity and ensure long-term reliability.
Introduction
Structural Overview
Installation Guidelines
Usage Recommendations and Operational Tips
Performance Inspection and Maintenance
After-Sales Support and Warranty
Frequently Asked Questions (FAQs)
Conclusion
The Single-Axis Programmable Horizontal Spindle and Rectangular Table Bearing Surface Grinder is specifically engineered for precision bearing surfaces, mold-making, tool fabrication, and high-accuracy metalworking. Its combination of programmable single-axis movement, horizontal spindle, and rectangular table ensures stable grinding with repeatable results, ideal for high-volume or precision-critical operations.
High-precision grinding for flat and contoured surfaces
Programmable single-axis control reduces operator error
Stable rectangular table supports heavy and irregular workpieces
Energy-efficient motors and coolant systems
Durable construction for long-term industrial use
Understanding the structure of the grinder is crucial for proper operation, maintenance, and troubleshooting.
| Component | Description |
|---|---|
| Horizontal Spindle | Provides uniform contact with the workpiece; supports minimal vibration and high-accuracy grinding |
| Rectangular Table | Durable cast-iron table allowing stable workpiece mounting and smooth movement along the X-axis |
| Single-Axis Programmable Control | Enables precise table movement with programmable feed rates and positioning |
| Base | Heavy-duty cast iron base designed for rigidity and vibration damping |
| Grinding Wheel | High-precision abrasive wheel compatible with various metal types |
| Coolant System | Integrated or external system for heat management and surface finish quality |
| Safety Features | Emergency stop, overload protection, and protective covers |
Vibration-resistant base ensures consistent surface quality
Programmable axis allows automated, repeatable operations
Horizontal spindle provides uniform grinding pressure
Rectangular table accommodates large or irregular parts
Proper installation is essential for performance, safety, and longevity.
Level, vibration-free foundation capable of supporting machine weight
Controlled ambient temperature (20–25°C) and low humidity
Adequate lighting and ventilation
Compliant electrical supply with proper grounding
Unpacking and Inspection: Carefully unpack the machine and inspect for shipping damage.
Positioning: Place the machine on the foundation using vibration-damping pads.
Leveling: Use precision leveling tools to ensure table and spindle alignment.
Electrical Connections: Connect power supply, ensuring proper grounding and compliance with local standards.
Coolant System Setup: Connect integrated or external coolant system; check flow and filtration.
Initial Test Run: Verify spindle rotation, table movement, and emergency stop functions.
Pro Tip: Follow the manufacturer’s installation manual closely to avoid alignment errors and ensure safe operation.
Proper operation ensures high-quality results and prolongs machine lifespan.
Inspect grinding wheel for wear or damage
Verify table alignment and single-axis programmability
Check coolant levels and ensure system is functioning
Confirm safety guards and emergency stops are operational
Use appropriate grinding wheels for the material type
Program single-axis sequences carefully to avoid overloading
Gradually increase feed rates for smooth surface finishes
Secure workpieces using clamps, magnetic, or vacuum chucks
Monitor coolant flow to prevent overheating
Clean the table, spindle, and surrounding area
Inspect workpieces for dimensional accuracy and surface finish
Lubricate guideways and mechanical components
Record any operational anomalies for maintenance logs
Regular inspection and maintenance ensure consistent accuracy and minimize downtime.
| Test | Purpose |
|---|---|
| Surface Flatness Check | Ensures table and workpiece meet dimensional specifications |
| Spindle Runout Test | Confirms minimal deviation for precise grinding |
| Vibration Analysis | Detects potential instability or defects during operation |
| Coolant Efficiency Test | Verifies coolant flow and heat management effectiveness |
Clean work area and grinding table
Inspect grinding wheel and spindle
Check coolant levels
Lubricate guideways and bearings
Verify table and spindle alignment
Inspect electrical connections
Dress or replace grinding wheels
Perform full calibration and precision checks
Replace coolant filters and check flow efficiency
Pro Tip: Maintain a detailed log of maintenance and inspection activities to predict component replacements and avoid unexpected downtime.
Reliable after-sales support ensures machine longevity and operational efficiency.
Technical assistance via phone, email, or on-site service
Spare parts availability for grinding wheels, bearings, and coolant components
Training on operation, programming, and maintenance
Regular software updates for programmable controls
Typically covers 12–24 months for mechanical and electrical components
Exclusions include consumables like grinding wheels and filters
Extended service plans may be available for high-volume industrial use
Pro Tip: Register the machine with the manufacturer to access extended support and warranty services.
Q1: Can it grind large bearing surfaces?
A: Yes, the rectangular table and horizontal spindle provide stable support for large or irregular workpieces.
Q2: How precise is the single-axis programmable movement?
A: Typically ±0.01 mm repeatability, depending on calibration and maintenance.
Q3: Is coolant necessary for all operations?
A: Coolant improves surface finish, reduces heat, and prolongs wheel life, especially for hard metals.
Q4: Can it be used for prototype production?
A: Yes, programmable single-axis control allows flexible operation for small-batch or prototype machining.
Q5: How often should maintenance be performed?
A: Daily checks, weekly lubrication, and monthly calibration are recommended for optimal performance.
The Single-Axis Programmable Horizontal Spindle and Rectangular Table Bearing Surface Grinder offers precision, stability, and programmability for high-accuracy bearing surface grinding. Its robust construction, programmable single-axis movement, and reliable horizontal spindle make it ideal for mold-making, tool fabrication, automotive, aerospace, and R&D applications. By following proper installation procedures, usage recommendations, and maintenance protocols, operators can ensure consistent surface quality, long-term machine reliability, and enhanced productivity.
