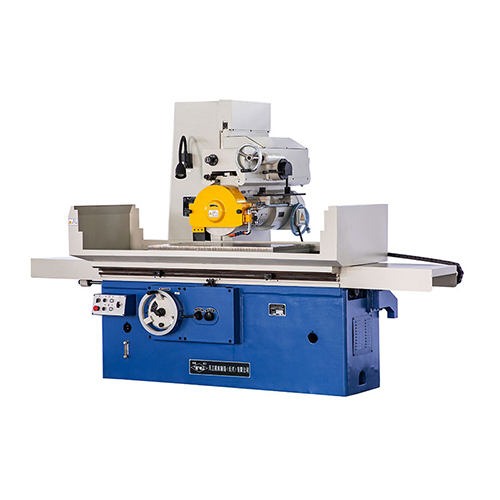

Features of a standard surface grinder:
● The longitudinal movement of the worktable and the lateral feed of the grinding head are hydraulically driven, and lateral feed can also be manually operated.
● Vertical feed is manual, and the grinding wheel spindle is driven by a built-in electric motor.
● The main machine is constructed of high-strength castings, seasonally aged, and manually treated, resulting in high precision and minimal thermal deformation.
Technical parameters:
| parameter | unit | M7130Z | M7132Z | M7140Z | M7140Z(High) | M7150Z | M7150ZX1600 | ||
| Workbench | Table size (width x length) | mm | 300X1000 | 320X1000 | 400X1000 | 400X1000 | 500X1000 | 500X1600 | |
| Maximum grinding size (width x length x height) | mm | 300X1000X400 | 320X1000X400 | 400X1000X400 | 400X1000X600 | 500X1000X400 | 500X1600X400 | ||
| Workbench longitudinal stroke (hydraulic) | mm | 200~1100 | 200~1100 | 1100 | 1100 | 1100 | 1600 | ||
| Workbench speed (stepless) | m/min | 3-27 | 3-27 | 3-27 | 3-27 | 3-20 | 3-20 | ||
| Number of T-slots on the workbench X width | 3X18 | 3X18 | 3X18 | 3X18 | 3X18 | 3X18 | |||
| Workbench load capacity | kg | 468 | 499 | 624 | 624 | 624 | About 600 | ||
| grinding head | Distance from grinding wheel spindle center to workbench | mm | 135~575 | 135~575 | 575 | 775 | 575 | 575 | |
| Grinding head transverse intermittent feed per stroke | mm/times | 3~30 | 3~30 | 5~25 | 5~25 | 5~25 | 5~25 | ||
| Grinding wheel spindle speed | rpm | 1440 | 1440 | 1450 | 1450 | 1440 | 1440 | ||
| Vertical feed handwheel dial value | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | ||
| Grinding head feed per handwheel rotation | Vertical feed | mm | 1.00 | 1.00 | 400 | 400 | 400 | 400 | |
| Cross feed | mm | 8 | 8 | 400 | 600 | 500 | 500 | ||
| Grinding wheel size (outer diameter x width x inner diameter) | mm | Φ(270~350)X40XΦ127 | Φ(270~350)X40XΦ127 | Φ350X40XΦ127 | Φ350X40XΦ127 | Φ350X40XΦ127 | Φ350X40XΦ127 | ||
| Motor power | Total motor power | kw | About 13 | About 13 | About 13 | About 13 | 12.49 | 12.49 | |
| Grinding head motor power | kw | 9 | 9 | 9 | 9 | 9 | 9 | ||
| Working accuracy | Parallelism of the machined surface to the base | mm | 300:0.005 | 300:0.005 | 300:0.005 | 300:0.005 | 300:0.005 | 300:0.005 | |
| surface roughness | um | Ra0.63 | Ra0.63 | Ra0.63 | Ra0.63 | Ra0.63 | Ra0.63 | ||
| Machine weight | weight | kg | 3600 | 3800 | 4000 | 4300 | 3900 | 5300 | |
| Gross weight | kg | 00 | 00 | 00 | 00 | 4300 | 5500 | ||
| Overall dimensions (length x width x height) | mm | 2250X1700X2400 | 2250X1700X2400 | 2500X1673X2045 | 2500X1673X2045 | 2500X1673X2045 | 4150X1700X2045 | ||
High-Efficiency Horizontal Spindle and Rectangular table surface grinder: Specifications, Highlights, Performance, and Operation
The High-Efficiency Horizontal Spindle and Rectangular Table Surface Grinder is designed for precision surface finishing with superior productivity and minimal vibration. Combining a horizontal spindle with a robust rectangular table, it ensures consistent flat and contoured surface quality for mold-making, tool fabrication, and precision metalworking industries. This guide provides a comprehensive overview of product specifications, key features, performance characteristics, and operational best practices to maximize efficiency and reliability.
Introduction
Product Specifications
Key Product Highlights
Performance Characteristics
Operational Tips and Best Practices
Maintenance Guidelines
Frequently Asked Questions (FAQs)
Conclusion
The High-Efficiency Horizontal Spindle and Rectangular Table Surface Grinder addresses the need for high-precision surface finishing in modern industrial applications. Its combination of horizontal spindle mechanics and a durable rectangular table enables stable grinding, high productivity, and consistent results. The machine is ideal for processing molds, dies, precision tools, and bearing surfaces.
High-efficiency grinding with reduced cycle time
Stable operation with minimal vibration
Supports large and irregular workpieces
Durable construction for long-term reliability
Energy-efficient motors and optimized coolant system
The following table summarizes the key technical parameters:
| Feature | Specification |
|---|---|
| Table Size | 500 mm × 250 mm to 1000 mm × 500 mm |
| Spindle Type | Horizontal, high-precision bearings |
| Spindle Speed | 2800–3600 RPM, adjustable |
| Grinding Wheel Diameter | 150–300 mm |
| Table Travel (X-Axis) | 400–1000 mm |
| Accuracy | ±0.01 mm for flat surfaces |
| Control Type | Manual or CNC-assisted |
| Base Material | Heavy-duty cast iron |
| Coolant System | Integrated or external |
| Safety Features | Emergency stop, overload protection, enclosure |
Pro Tip: Selecting the appropriate wheel type and spindle speed for your material ensures maximum surface quality and efficiency.
The grinder is optimized for productivity, enabling faster material removal without compromising precision. Energy-efficient motors reduce operational costs while maintaining consistent spindle speed.
The horizontal spindle provides uniform contact with the workpiece, reducing vibration and ensuring smooth surface finishes. High-quality spindle bearings maintain minimal runout, delivering repeatable results.
The cast-iron rectangular table ensures stable workpiece mounting and smooth travel. It can accommodate large or irregular parts, making it suitable for a wide range of industrial applications.
Manual and CNC-assisted operation allow operators to choose between precision manual control or automated programmable sequences for high-volume production.
The combination of horizontal spindle stability and a rigid rectangular table ensures ±0.01 mm repeatability on flat and contoured surfaces. This level of precision is essential for tool-making, mold finishing, and bearing surfaces.
The machine produces smooth and uniform finishes with minimal vibration marks. Proper wheel selection and feed rate adjustment further enhance surface quality.
Optimized motor design and high-efficiency spindle allow for faster cycle times while maintaining surface integrity. This efficiency reduces labor costs and increases throughput in industrial environments.
| Material Type | Recommended Grinding Wheel |
|---|---|
| Steel | Aluminum oxide or CBN wheel |
| Stainless Steel | CBN or ceramic wheel |
| Aluminum | Silicon carbide wheel |
| Titanium | CBN or diamond-coated wheel |
| Copper | Aluminum oxide or silicon carbide wheel |
Pro Tip: Match wheel type to material hardness to extend wheel life and improve surface finish.
Inspect the grinding wheel for wear or cracks
Verify table alignment and spindle calibration
Check coolant levels and flow rate
Ensure safety guards and emergency stops are functional
Gradually increase feed rate to avoid surface irregularities
Use manufacturer-recommended wheel type for each material
Secure workpieces firmly using clamps, magnetic, or vacuum chucks
Monitor spindle load and coolant temperature
Clean the grinding table, spindle, and surrounding area
Inspect workpieces for dimensional accuracy and surface quality
Lubricate guideways, bearings, and moving parts
Record operational data and note any anomalies
Pro Tip: Regular calibration and inspection help maintain precision over long-term operations.
Proper maintenance ensures machine longevity and consistent performance.
Clean work area and table
Inspect grinding wheel and spindle
Check coolant levels
Lubricate slideways and bearings
Inspect electrical connections and spindle operation
Verify table travel and alignment
Dress or replace grinding wheels
Perform full calibration and precision checks
Inspect coolant system filters and replace as needed
Q1: Can it handle large workpieces?
A: Yes, the rectangular table design supports large and irregular parts.
Q2: How precise is the horizontal spindle?
A: The spindle ensures ±0.01 mm repeatability for flat and contoured surfaces.
Q3: Is coolant mandatory for operation?
A: While not always required, coolant improves surface finish, reduces heat, and prolongs wheel life.
Q4: Can it be used for high-volume production?
A: Yes, the machine is designed for high-efficiency operation with manual or CNC-assisted control.
Q5: What materials are compatible?
A: Steel, stainless steel, aluminum, titanium, copper, and other metals, using recommended wheel types.
The High-Efficiency Horizontal Spindle and Rectangular Table Surface Grinder combines precision, stability, and productivity for modern industrial applications. Its durable construction, optimized spindle and table design, and high-efficiency operation make it suitable for mold-making, tool fabrication, automotive, aerospace, and R&D industries. Following proper operational practices, maintenance routines, and material-specific guidelines ensures superior surface finishes, consistent accuracy, and long-term reliability.
